Description

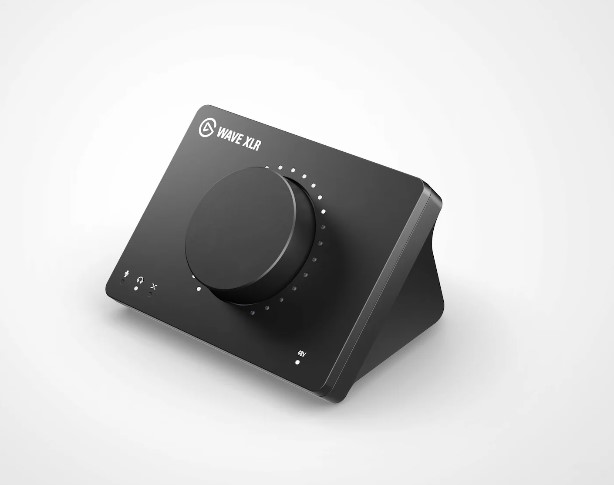

Elgato Wave XLR Input
A compact USB interface that gives your mic superpowers, Wave XLR features proprietary anti-distortion technology, swappable design components, and integration with custom mixing software.
BRING YOUR MIC
You love your XLR microphone. You’ll love it even more with Wave XLR, a compact USB interface that gives your mic superpowers.
ALL IN ONE, AND MORE
Wave XLR does the work of multiple devices and packs features you won’t find in conventional audio interfaces. Like proprietary anti-distortion technology, a capacitive mute button, direct integration with custom Wave Link mixing software, and an interchangable faceplate.
MULTIFUNCTIONAL CONTROL DIAL
TOGGLE PHANTOM POWER
CROSSFADE BETWEEN MIC AND PC MIX
ADJUST OUTPUT VOLUME
SET INPUT GAIN
MULTIFUNCTIONAL CONTROL DIAL
TOGGLE PHANTOM POWER
CROSSFADE BETWEEN MIC AND PC MIX
ADJUST OUTPUT VOLUME
SET INPUT GAIN
CAPACITIVE SENSOR
XLR INPUT
HIGH-POWER HEADPHONE OUTPUT
USB TYPE-C
CAPACITIVE SENSOR
Tap to mute
XLR INPUT
Connect your microphone
HIGH-POWER HEADPHONE OUTPUT
Crystal clear, zero-latency monitoring
USB TYPE-C
State-of-the-art connection
SWITCH YOUR LOOK ANYTIME
PLENTY OF POWER
Give your mic the boost it needs without an external preamp. Up to 75 dB of ultra-low-noise gain makes notoriously insensitive dynamic mics sound loud and clear, while 48 volts of phantom power bring condenser mics to life.
GET AMPED WITHOUT CLIPPING
Now you don’t need to watch levels while live, nor attempt to salvage distorted audio in post production. When input levels peak, proprietary Clipguard technology instantly reroutes sound through a second signal path that runs at a lower volume. The result is clean audio output, no matter how loud you scream.
WITH CLIPGUARD
SWITCHABLE LOW-CUT FILTERS
Dual selectable filters let you remove low frequencies for close and distant mic positions.
WAVE LINK
The creator’s mixer
Intuitive software custom-built for content creation, Wave Link gives you ultimate control of your Twitch stream, YouTube video or podcast audio.
MULTI-CHANNEL COMMAND
Game audio, voice chat, music, alerts, samples, multiple mics* and more. Nine independent input channels let you blend audio sources in real time.
*Multiple Wave mics are not supported at this time
SUBMIXING MASTERY
Create two completely independent output mixes — one for you, one for your audience — and monitor each on the fly.
MARKETPLACE
THOUSANDS OF EFFECTS
Add audio effects from Marketplace or third-party VST plugins directly to your Wave Link mixer, no manual install needed. Apply them to any input channel — like your microphone, game, or voice chat — then customize settings to create a sound all your own.
MORE FEATURES
EFFORTLESS CONTROL
Mute copyrighted music in your stream mix to avoid violations, and keep listening via your monitor mix.
STREAM READY
Add Wave Link as a master audio source in OBS Studio to take complete control of your audio workflow.
SMART PROCESSING
Wave Link is gentle on your CPU* — no external audio processing hardware required.
*CPU load dependent on VST usage
YOUR WORKFLOW. EVOLVED.
Stream Deck works seamlessly with Wave Link to give you complete studio control. Easily set keys to mute sources, adjust levels and skip tracks — anything. Or create Multi Actions to adjust audio, lighting and camera settings simultaneously — all with a single tap. It’s advanced A/V automation at your fingertips. Tactile and fully customizable. A hybrid mixing solution like no other.
FREQUENCY RESPONSE
20 Hz – 20 kHz
DYNAMIC RANGE
100 dB (120 dB Clipguard engaged)
EQUIVALENT INPUT NOISE (EIN)
-130 dBV @ 60 dB gain
GAIN RANGE
0 – 75 dB
PHANTOM POWER
48 VDC, 7mA
MAXIMUM INPUT LEVEL
10 V @ 0 dB gain (Clipguard engaged)
MAXIMUM OUTPUT LEVEL
77 mW
RESOLUTION
24-bit
SAMPLE RATE
48 / 96 kHz
INTERFACE
USB-C
IN THE BOX
Wave XLR, USB-C Cable (250 cm / 98.4 in), Quick Start Guide
SKU: 10MAG9901
